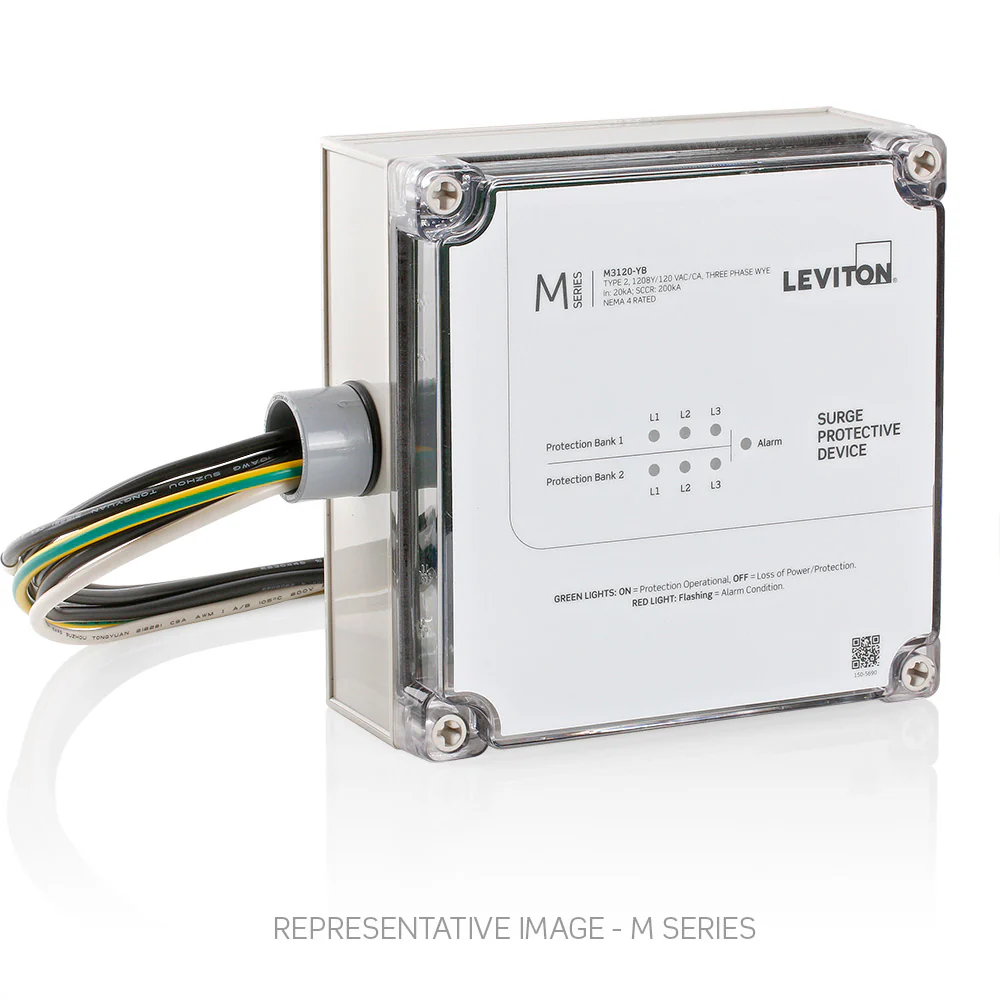

Type 2 Surge Protective Panel SPD, Gray, M3600-DB
HomeStore

Type 2 Surge Protective Panel SPD, Gray, M3600-DB

Type 2 Surge Protective Panel SPD, Gray, M3600-DB

$859.95

Original: $2,457.00

-65%
Type 2 Surge Protective Panel SPD, Gray, M3600-DB—

$2,457.00

$859.95

The Story

Leviton M Series Type 2 Surge Panel, 600 VAC, Three Phase Delta, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 2000, L-L: 2000, Maximum Continuous Operating Voltage (MCOV): 680V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering
  • Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
  • Ideal for POINT-OF-ENTRY or MAIN SERVICE ENTRANCE INSTALLATIONS, the M series offers greater protection in a wide variety of voltage configurations
  • Article 230.67 of the 2020 NEC requires all services supplying dwelling units to be provided with an SPD. The SPD must be a Type 1 or Type 2 SPD.
  • Article 230.67 of the 2023 NEC EXPANDED on the 2020 requirements to dormitory units, guest rooms and guest suites of hotels and motels, and additional areas to require Type 1 or 2 surge protection

For more information please visit www.leviton.com

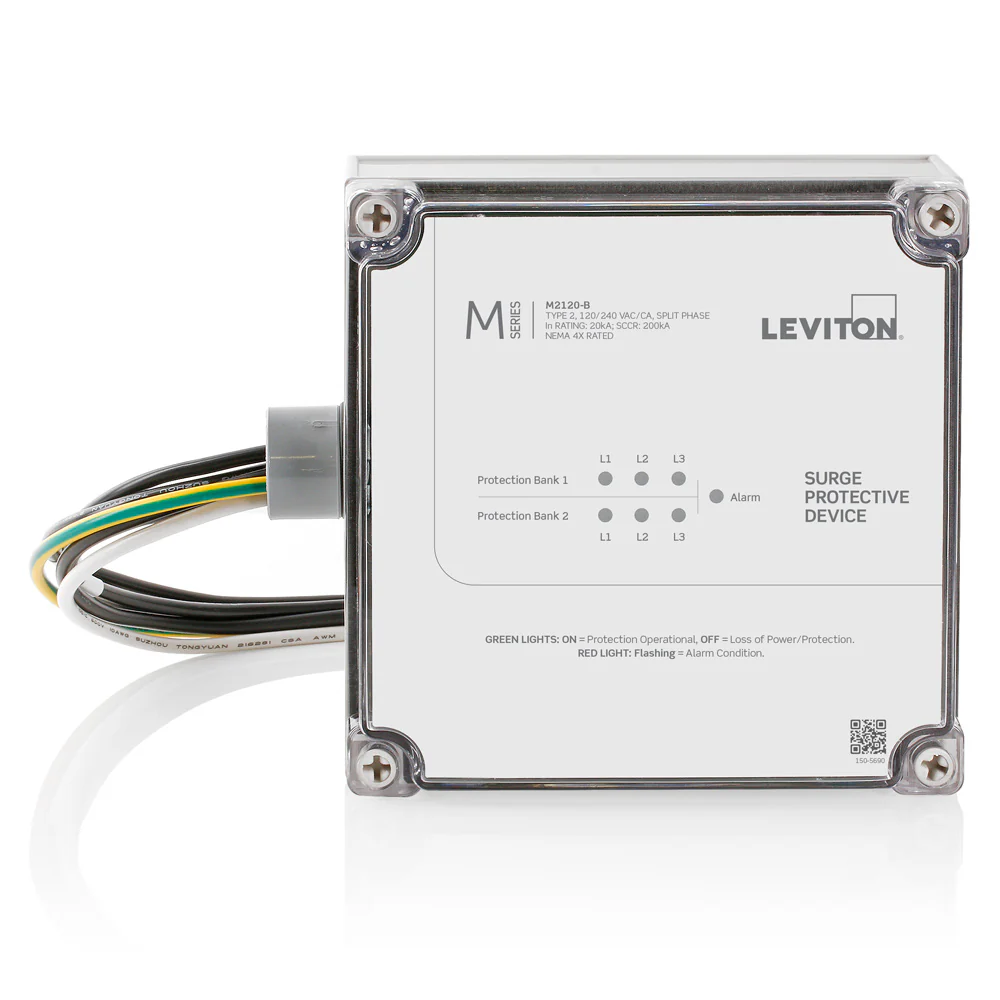

Type 2 Surge Protective Panel SPD, Gray, M3600-DB - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

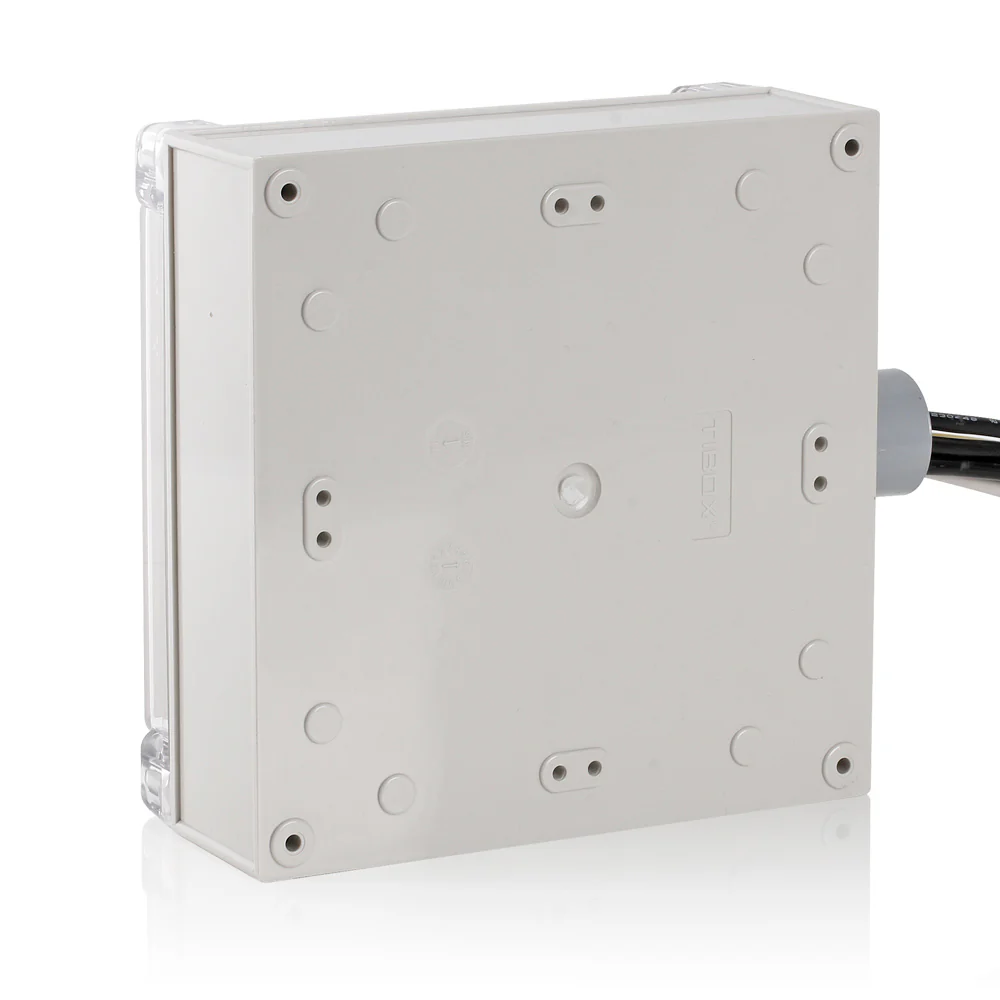

Type 2 Surge Protective Panel SPD, Gray, M3600-DB - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Leviton M Series Type 2 Surge Panel, 600 VAC, Three Phase Delta, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 2000, L-L: 2000, Maximum Continuous Operating Voltage (MCOV): 680V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering
  • Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
  • Ideal for POINT-OF-ENTRY or MAIN SERVICE ENTRANCE INSTALLATIONS, the M series offers greater protection in a wide variety of voltage configurations
  • Article 230.67 of the 2020 NEC requires all services supplying dwelling units to be provided with an SPD. The SPD must be a Type 1 or Type 2 SPD.
  • Article 230.67 of the 2023 NEC EXPANDED on the 2020 requirements to dormitory units, guest rooms and guest suites of hotels and motels, and additional areas to require Type 1 or 2 surge protection

For more information please visit www.leviton.com
